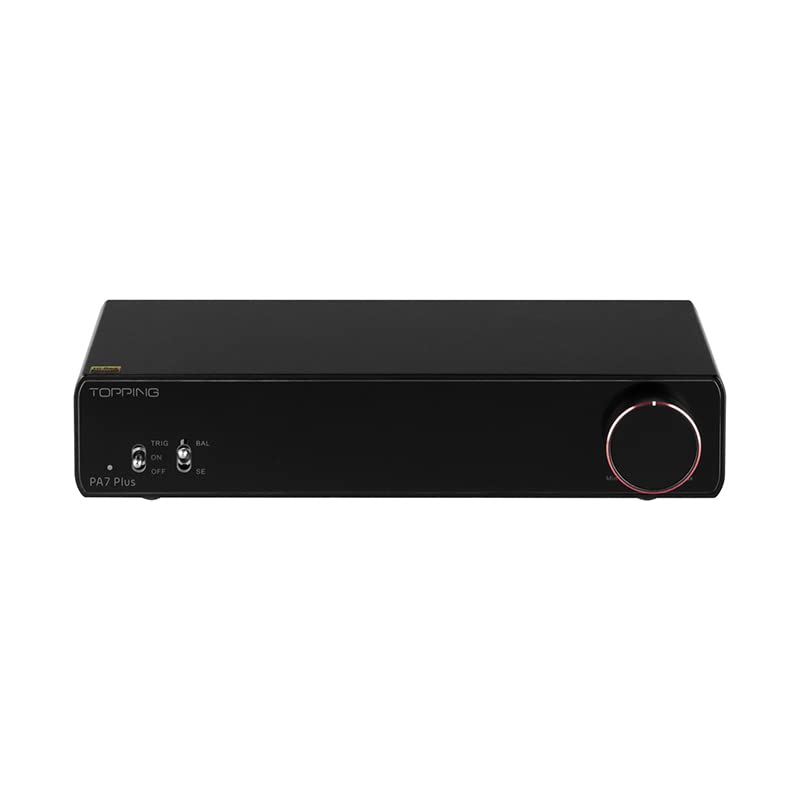

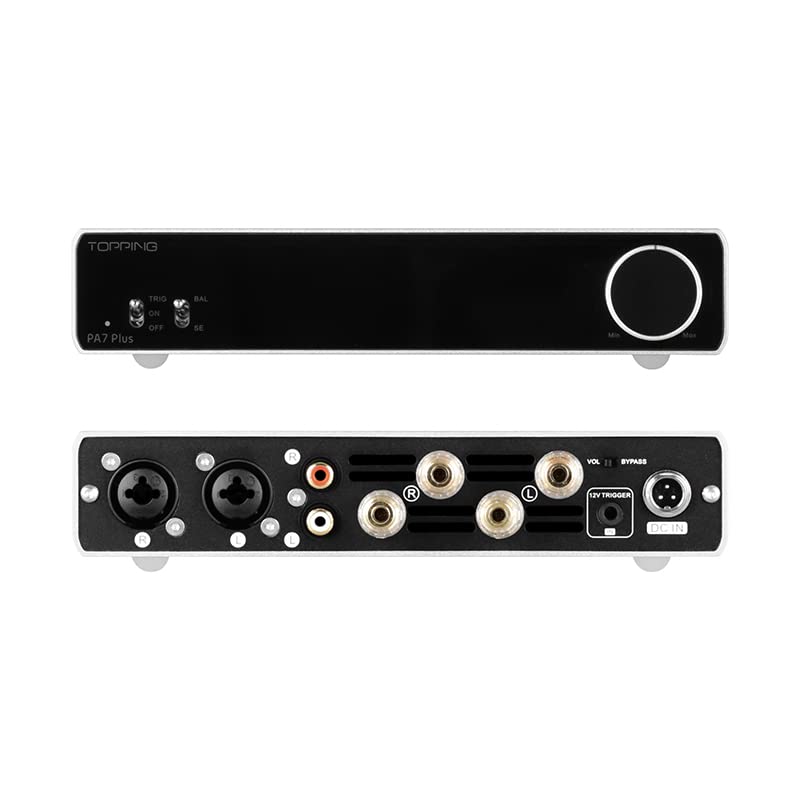

TOPPING PA7 Plus Class D Power Amplifier Full Balance 2x 300W Audio Digital Amplifier XLR/RCA/TRS Input Home Desktop Stereo Amplifier for Speaker (Black)

TOPPING PA7 Plus Full Balance Class D Power Amplifier

TOPPING PA7 Plus Parameters

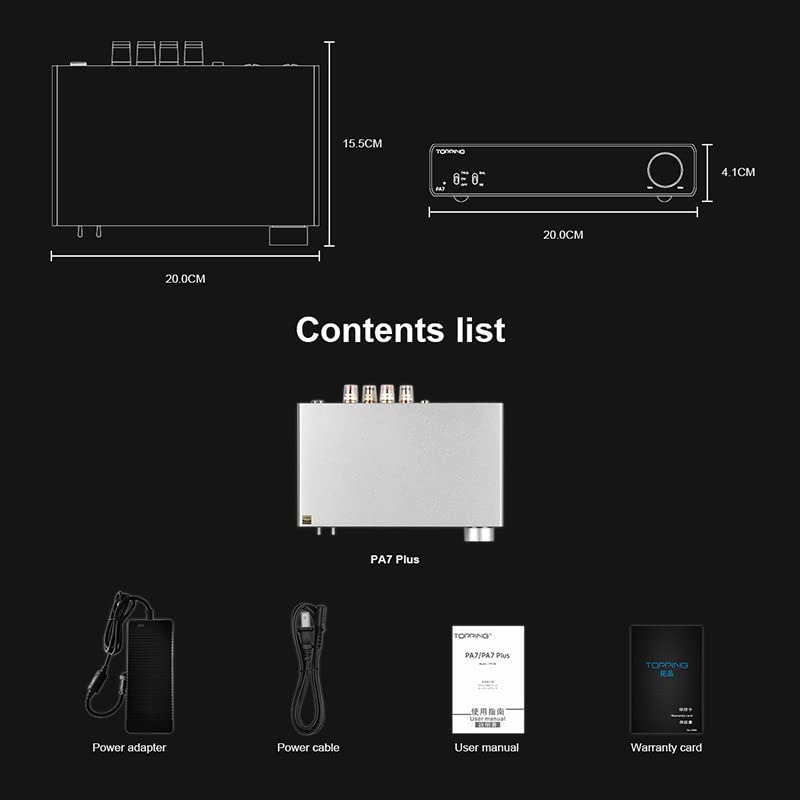

Measurements: 7.9 x 6.1 x 1.6 inches (20 x 15.5 x 4.1 cm); Weight: 3.1 lbs (1.4

PA7 Plus Power Amplifier Specifications

Single End (SE):

THD+N @ 1kHz(With A Weight): <0.005%@4Ω 20W; <0.004%@8Ω 20WTHD+N @ 20kBW (with No Weight): <0.0090%@4Ω 20W; <0.0040%@8Ω 20WSNR MAX OUT 1kHz(A weight) Included: 124dB Dynamic Range @ 1kHz(With A Weight): 124dB Frequency Response: 20Hz-40kHz(±1.5dB) Output Level: 90Vpp@4Ω; 91Vpp@8Ω Noise (with A Weight): <17uVrms Channel Crosstalk @ 1kHz:-96dB Input Sensitivity: 2.0Vrms Gain: 25 .7dB channel balance :0.5dB

BAL:

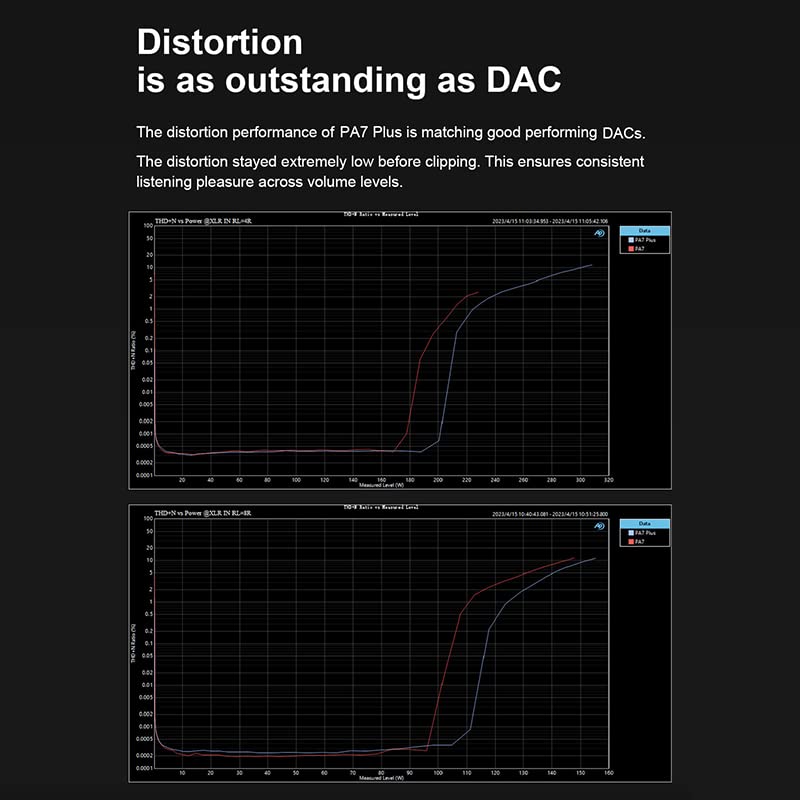

THD+N@1kHz(A-wt):<0.004%@4Ω 20W;<0.0003%@8Ω 20WTHD+N@20kBW(No-wt):<0.0090%@4Ω 20W;<0.0040%@8Ω 20WSNR@MAX OUT kHz(A-wt. ): 127dBDynamic Range@1kHz(A-wt): 127dB Frequency Response: 20Hz-40kHz(±0.3dB); Output Level: 90Vpp@4Ω; 91Vpp@8Ω Noise (A-wt): <17uVrms Channel Crosstalk @1kHz:-116dB Input Sensitivity: 4.0Vrms Gain :19.8 dB Channel Balance: 0.5dB Output: 300W x 2@4Ω THD+N<10%165W x 2@8Ω THD+N<10%45W x 2@4Ω THD+N<1%135W x 2@8Ω THD+N<1% Load Impedance: 4-8Ω

Note: The above data is the test result of TOPPING laboratory under AC220V 50Hz conditions.
